HEA1001C Harsh Environment Voice Module
The HEA1001C boasts advantages such as a wide operating voltage range, high electromagnetic compatibility, high protection level, wide operating temperature range, powerful processor, diverse input/output configurations, flexible CAN communication, status indicator lights, and strong load capacity, making it suitable for various industrial and application scenarios.
Advantages:
1. Wide operating voltage range: Operating voltage is 8-32VDC, adapting to various power supply environments.
2. Strong electromagnetic compatibility: Conforms to multiple electromagnetic compatibility test standards and specifications, such as GB/T 17626.4-2008, GB/T 17626.5-2008, GB/T 17626.2-2006, with all test levels at level 4, ensuring stable operation of the equipment in complex electromagnetic environments.
3. High protection level: IP67 protection level, with dust and water immersion protection capabilities, suitable for harsh industrial environments.
4. Wide operating temperature range: -40 to 85 ℃ operating temperature range, suitable for various extreme climate conditions.
Features:
1. Powerful processor: Uses Cortex M4 32bit MCU, providing high-performance computing and processing capabilities.
2. Diverse input/output configurations:

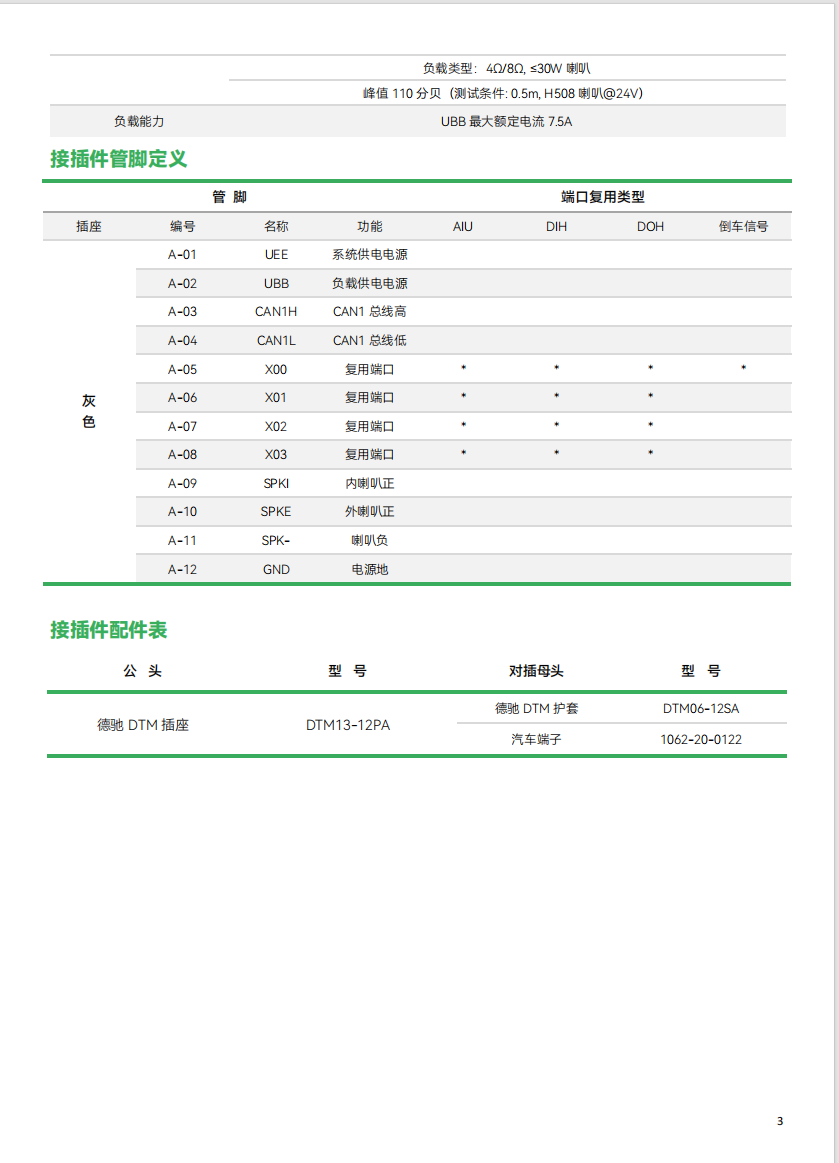

? Input: Supports 4 digital inputs (DIH) and 4 analog voltage inputs (AIU), as well as 1 analog resistance input (AIR), meeting the connection requirements of different sensors and signals. Specifically, the X00 port serves as a reverse signal input, enabling high-level triggering of reverse voice alerts even when the system power supply is not powered.
? Output: Supports 4 high-side outputs (DOH), with bridge output functionality, directly driving speakers for voice alerts; storage capacity up to 2 GByte.
3. Flexible CAN communication: Supports CAN baud rates from 20 kBit/s to 1MBit/s (default 250kBit/s), and has a default CAN communication protocol ID (0x28), facilitating system integration and communication.
4. Status indicator light: Equipped with one blue LED indicator light, indicating the device status through different flashing frequencies, such as normal operation, CAN communication abnormality, and Boot status.
5. Strong load capacity: UBB maximum rated current is up to 7.5A, supporting 4 Ω/8Ω, ≤30W speaker loads, with peak volume up to 110 decibels.
Classification:
Electronic Products
