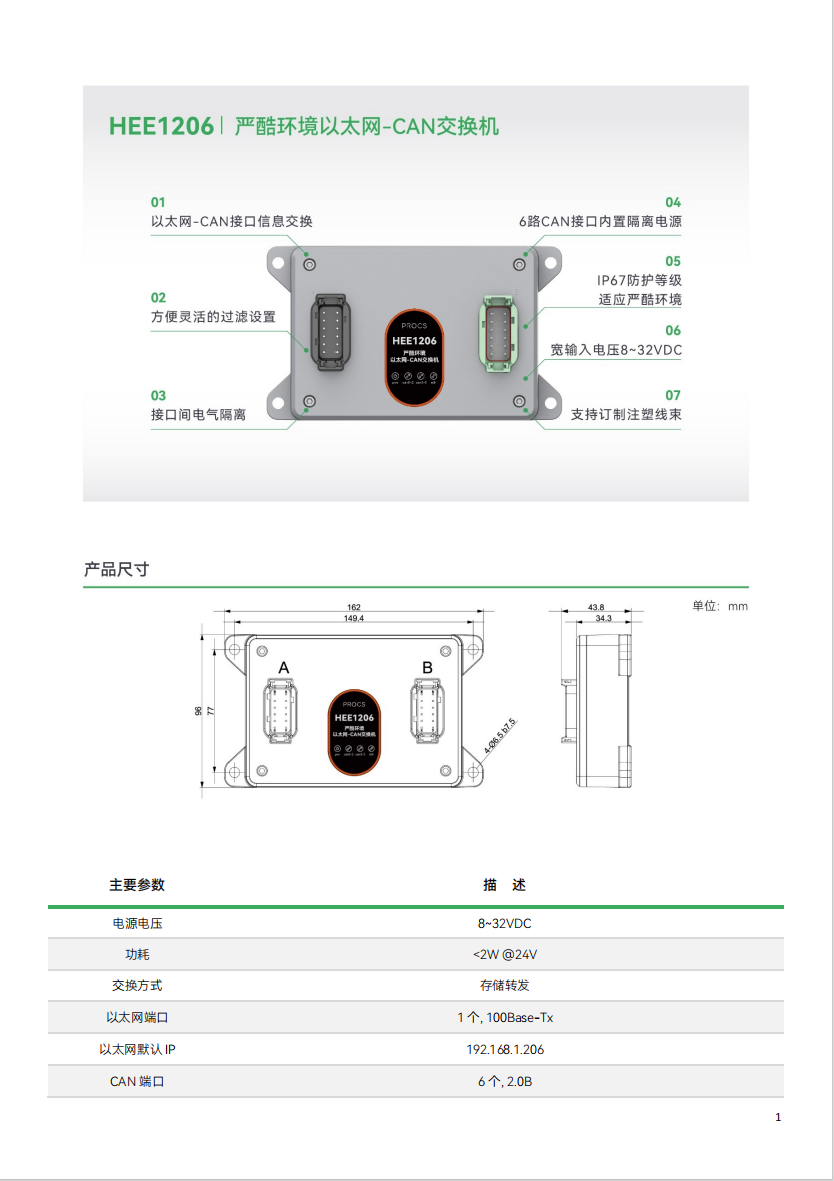

HEE1206 Harsh Environment Ethernet-CAN Switch
The HEE1206 boasts advantages such as a wide power supply voltage range, low power consumption, multiple communication configurations, a wide operating temperature range, and a high protection level. It also provides abundant ports and clear indicator lights for convenient device connection and status monitoring.
Advantages:
1. Wide Power Supply Voltage Range: Supports 8~32VDC power supply voltage, adapting to the power needs of different application scenarios.
Features:
1. Low Power Consumption: Power consumption is less than 2W at 24V, making it energy-efficient and environmentally friendly.
2. Store-and-Forward Switching Method: Ensures the reliability and stability of data transmission.
3. Ethernet Port Configuration: Provides one 100Base-TX Ethernet port, supporting network connection and data transmission.
4. Abundant CAN Ports: Features 6 CAN 2.0B ports, meeting the connection needs of various devices.

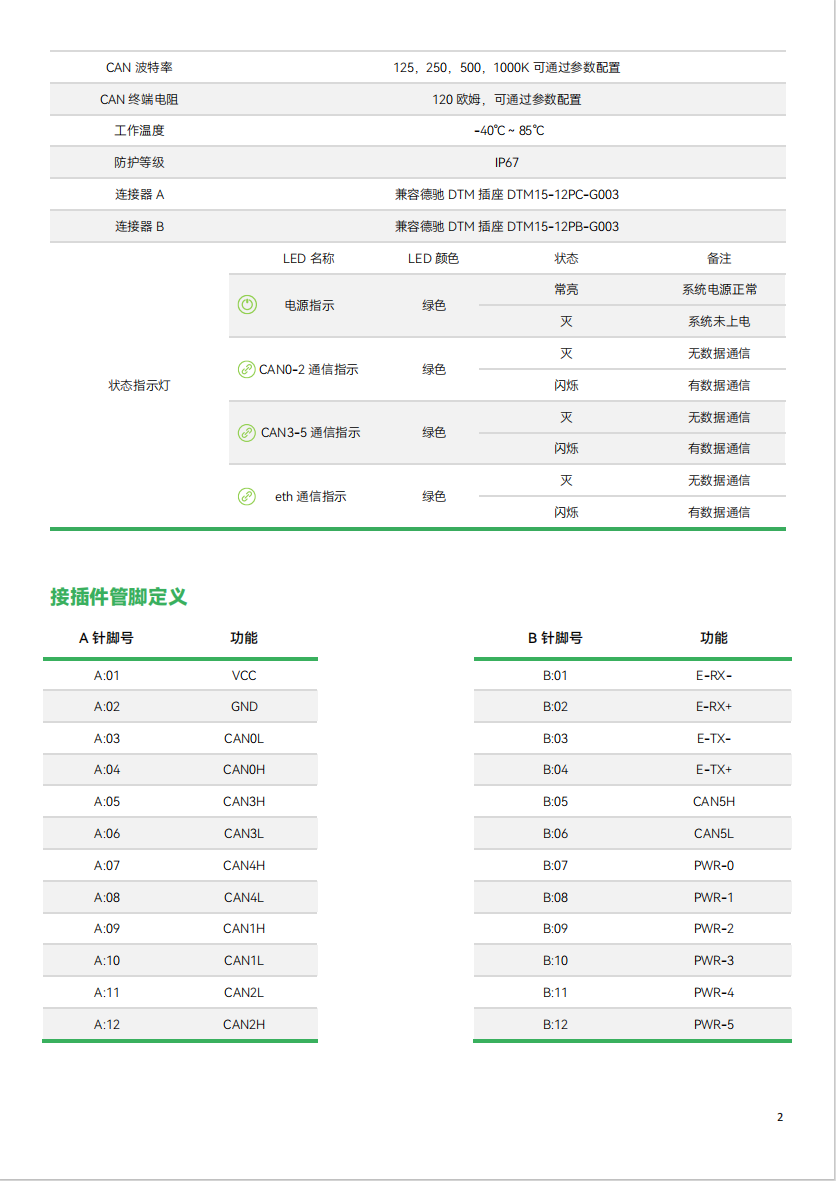

5. Configurable CAN Baud Rate: Supports various baud rate configurations such as 125K, 250K, 500K, and 1000K, adapting to different communication rate requirements.
6. Configurable CAN Termination Resistor: Allows users to configure according to actual needs, enhancing communication stability.
7. Wide Operating Temperature Range: Can operate normally in a temperature range of -40℃~85℃, adapting to harsh environments.
8. High Protection Level: Reaches IP67 protection level, with good waterproof and dustproof performance.
9. Clear Status Indicator Lights: Uses LED indicator lights to display the power supply, CAN communication, and Ethernet communication status, facilitating user monitoring of the device status.

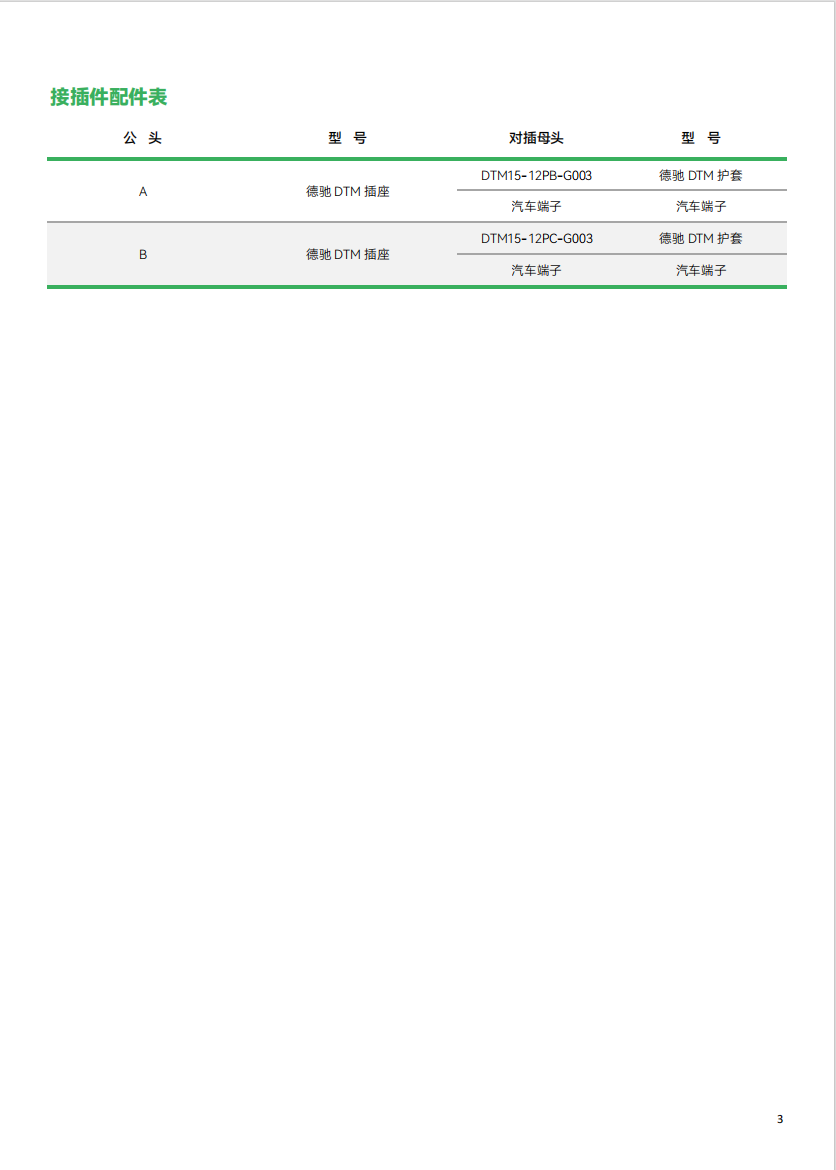

10. Strong Connector Compatibility: A and B connectors are compatible with Deutsch DTM sockets DTM15-12PC-G003 and DTM15-12PB-G003 respectively, facilitating connection with other devices.
Classification:
Electronic Products
